Synthetic Macro Fibre WAVE for Shotcrete Or Slabs

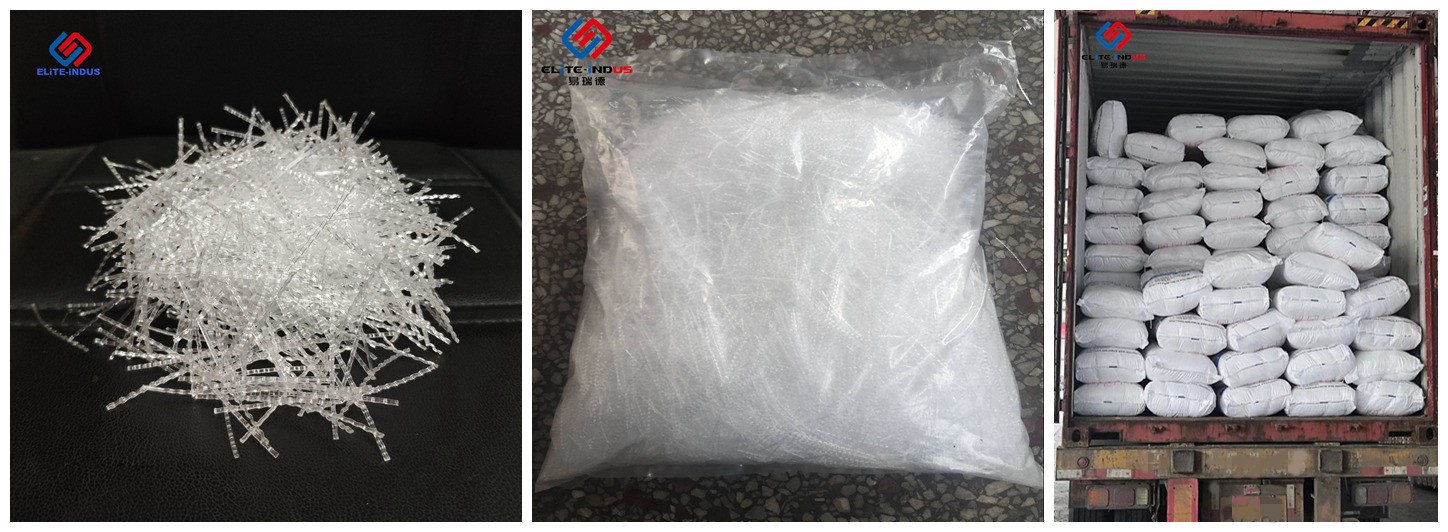

synthetic macro fibre waved type, can be packed in loose bag of 1kgs each, or packed in roll, then in carton

compliance with ASTM C1116 and EN14889-2

typical use for shotcrete, slabs, precast etc.... replace steel wire mesh, steel rebar, steel fibers etc...

Quantity:
Availability:





Inquire Add to Basket

Model:
ELT-WAVE
Brand:
ELITE-INDUS

Synthetic macro fibre synthetic macro fiber Macro Synthetic Fiber macro synthetic fibre Synthetic macrofiber Synthetic macrofibre waved synthetic macrofiber synthetic macrofiber 54mm synthetic macro fiber 54mm synthetic macrofiber 48mm

Products

Product Description

Synthetic Macro Fibre WAVE for Shotcrete Or Slabs

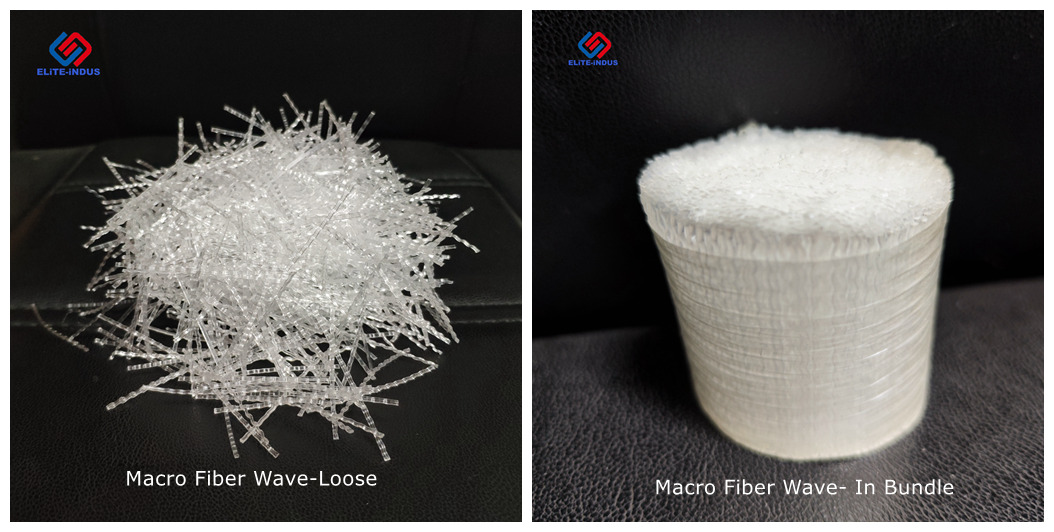

synthetic macro fiber wave

Description:

ELITE synthetic macro fibre wave is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers, steel rebar, welded steel mesh etc....

Variety of applications of synthetic macro fibre is suitable for concrete and shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements.

Concrete with our synthetic macro fiber will have three-dimensional reinforcing with enhanced flexural toughness,impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.

Main Technical Specification:

Fiber type	Wave	Elastic Modulas (MPa)	>6500
Crack Ratio(%)	15 +/-5	Equivalent Dia. (mm)	0.8+/-0.2
Color	Transparent, White	Tensile Strength (MPa)	≥500
Resistance to acid & alkali	Strong	Water absorbency	No
Density (g/cm3)	0.91+/- 0.01	Melt Point, C. Deg.	160-170
Moisture content	0%	Water absorbency	No
Length(mm)	48, 54, 65 or as per request

Features & Benefits:

◆ Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.

◆ Cost saving, is easier to use,to disperse and safe to handle.

◆ Can be used in highly corrosive circumstance.

◆ The shape is wave,which greatly improves the cohesive force between fibers and concrete,and also boosts shrinkage resistance and crack resistance.

◆ The toughness of macro fiber is less stronger than steel fibre.But test has shown slabs on grade and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibers per cubic meter, in comparison,using between 2kg-6kg of macro synthetic fibre percubic meter of concrete. Synthetic fibers achieve greater strength and ductility in the matrix.

Applications:

◆ Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
◆ Thin walled precast (septic tanks, vaults, walls, etc.)
◆ Shotcrete for tunnel linings, pool construction and slope stabilization
◆ Pavements and white-toppings

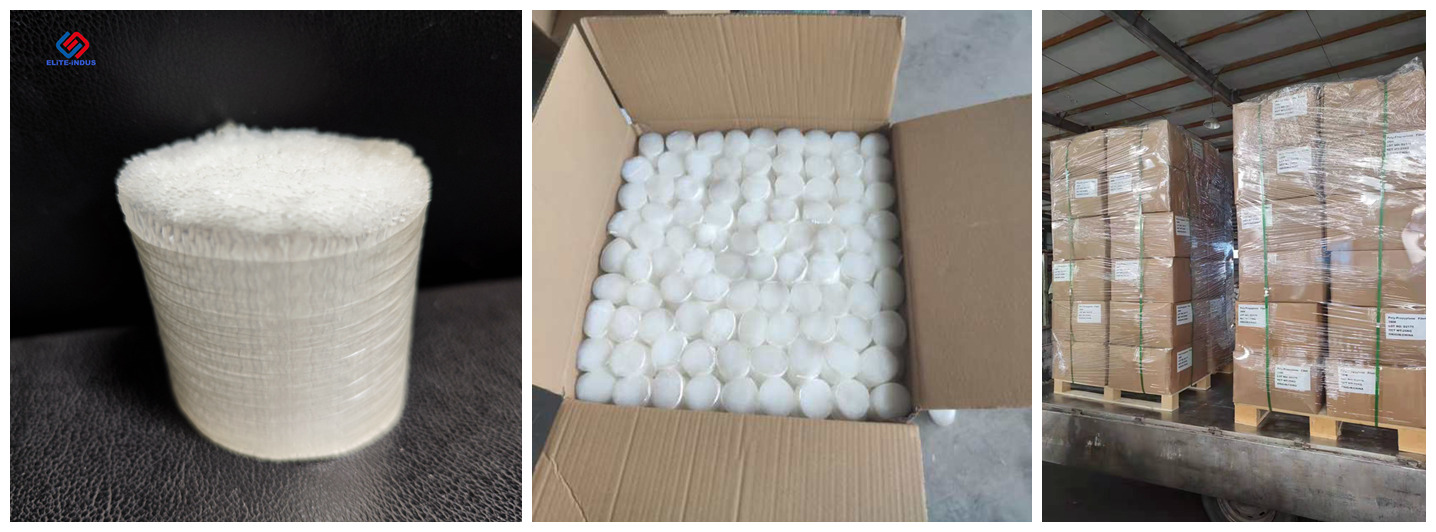

Packing Way A:

Around 100g/ water soluble film bundle, 20kgs/carton

10800kgs/20’gp, 21600 kgs/40’hq with pallet.

macro synthetic fibre wave
