3D Hooked End Steel Fiber ELT-HE

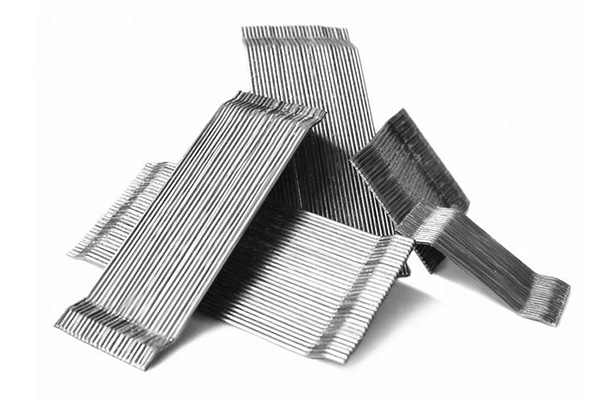

Hooked-end STEEL FIBER is a low carbon, cold-drawn and hooked-end steel wire fiber designed to provide concrete with temperature and shrinkage crack control, enhanced flexural reinforcement, improved shear strength and increase the crack resistance of concrete. The fiber can loosed or glued.

Quantity:
Availability:





Inquire Add to Basket

Model:
ELT-HE
Brand:
ELITE-INDUS

3D Hooked End Steel Fiber hooked end steel fiber hooked-end steel fiber end-hook steel fiber hooked end steel fibre hooked-end steel fibre end-hook steel fibre end-hooked steel fiber end-hooked steel fibre

Products

Product Description

HOOKED-END STEEL FIBER

ELT-HE HOOKED-END STEEL FIBER complies with ASTM C1116, EN14889-1 Standard Specification for Fiber Reinforced Concrete and Shotcrete and ASTM A820, Type I fiber, Standard Specification for Steel Fibers for Fiber Reinforced Concrete.

ELT-HE HOOKED-END STEEL FIBER These steel macro-fibers will also improve impact, shatter, fatigue and abrasion resistance while increasing toughness of concrete. Dosage rates will vary depending upon the reinforcing requirements and can range from 15 to 60 kg/m³.

Functions of HOOKED-END STEEL FIBER

◆ Increases impact, shatter and abrasion resistance of concrete

◆ Reduces segregation, plastic settlement, and shrinkage cracking of concrete

◆ Provides three-dimensional reinforcement against macro-cracking

◆ Increases overall durability, fatigue resistance and flexural toughness

◆ Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control

◆ Easily added to concrete mixture at any time prior to placement

Applications of HOOKED-END STEEL FIBER

◆ Commercial and industrial slabs on ground

◆ Bridge decks, overlays and pavements

◆ Precast concrete applications and slabs on pile

◆ Shotcrete, tunnel linings and slope stabilization

◆ Mass concrete and composite deck construction

product-cd01

Specifications of HOOKED-END STEEL FIBER

Model	Length MM	Diameter MM	Aspect Ratio (L/D)	Tensile Strength MPA
ELT 70/55	55	0.8	70	1100/1200/1300
ELT 80/60	60	0.75	80
ELT 50/38	38	0.75	50
ELT 45/35	35	0.75	45
ELT 45/30	30	0.65	45
ELT 100/60	60	0.62	100
ELT 80/50	50	0.62	80
ELT 55/35	35	0.62	55
ELT 50/30	30	0.62	50
ELT 65/35	35	0.54	65
ELT 65/60	60	0.90	65
Note	Other Specification ( Diameter/Length/Tensile Strength) can produce as per your request
