Micro Synthetic Fiber Monofilament 4mm - 30mm ELT-MONO

You are here: Home » Product Category » Synthetic Micro Fiber Monofilament » Micro Synthetic Fiber Monofilament 4mm - 30mm ELT-MONO

Micro Synthetic Fiber Monofilament 4mm - 30mm ELT-MONO

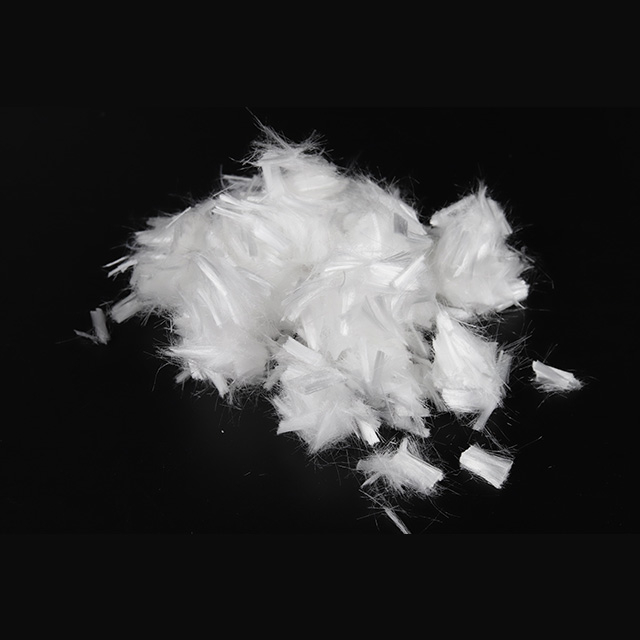

Micro Synthetic Fiber ELT-Mono fiber was Made by 100% virgin polypropylene multifilament (monofilament) fibers was produced by our patent advanced technology for fiber spinning, modified by adding functional additive and special surface-treating.

Mixing into cement concrete, it has many advantages such as good dispersing, better water affinity, strong linking force.

It is suited to reinforce and crack-resist to every kinds of cement concrete and mortar, specially used in engineering of building surface, floor, wall etc…..

Quantity:
Availability:





Inquire Add to Basket

Model:
ELT-MONO
Brand:
ELITE-INDUS

Micro Synthetic Fiber synthetic micro fiber polypropylene fiber pp fiber synthetic microfiber polypropylene monofilament fiber pp monofilament fiber

Products

Product Description

Micro Synthetic Fiber Monofilament type

Length: 4mm to 30mm

Micro synthetic fiber ELT-Mono is a monofilament polypropylene microfiber use for concrete reinforcement that complies with ASTM C 1116 or EN14889-2 Standard Specification for Fiber Reinforced Concrete and Shotcrete, and is specifically designed to help mitigate the formation of plastic shrinkage cracking in concrete.

Typically dosage rate of 0.6kg/m3 to 3kg/m3.

Functions of Micro Synthetic Fiber

◆ Resist to shrink & crack

◆ Increase seepage resistance

◆ Increase friction resistance

◆ Increase freezing & thawing resistance

◆ Improve tendons protection

◆ Replace steel net (using in plastering)

◆ Prevent mortar split and crackle expansion

◆ Increase impact resistance and peeling resistance

Advantages of Micro Synthetic Fiber

◆ Cost effective

◆ Replaces anti crack mesh reinforcement

◆ Decreases construction time and labor

◆ Inhibits intrinsic cracking in concrete

◆ Disperses uniformly throughout the mix

◆ Do not rust,Explosive spall control

Applications of Micro Synthetic Fiber

◆ Suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.

◆ Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.

◆ Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.

◆ Suit for any mortar projects and common concrete projects.

◆ Highway, bridge and other roads.

Applying Instructions

◆ Dosage :

for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar Is enough,

and for increasing reinforce and seepage resist application 1.8kg/m3 is enough.

◆ Stirring requirement :

The proportion of cement, sand and aggregate is no need to be changed.

Put cement, aggregate, additive and fiber together, then stir after adding enough water and time for stirring can be prolonged for 2~3 minutes in order to make the compound mix completely.

Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite before construction.

Specification of Micro Synthetic Fiber

◆ Normal Type ELT-MONO PPMF-A

Raw Material	Polypropylene	Crack Elongation	20+/-5%
Fiber Type	Monofilament PPMF-A	Fiber Diameter	20-30um
Melting Point (C Deg.)	160 - 170	Density (g/cm3)	0.91+/-0.01
Acid & Alkali Resistance	Strong	Tensile Strength (MPa)	450 min.
Length	Times of 4mm or 6mm	Water absorbency	NO
Normal Length	4mm, 6mm, 8mm, 12mm,18mm, 24mm, 30mm etc... (times of 4mm or 6mm with 1mm more or less )
