twisted
ELITE-INDUS
5503
PP fiber twisted
Polypropylene fiber twisted
Macro Synthetic Fiber twisted
Description

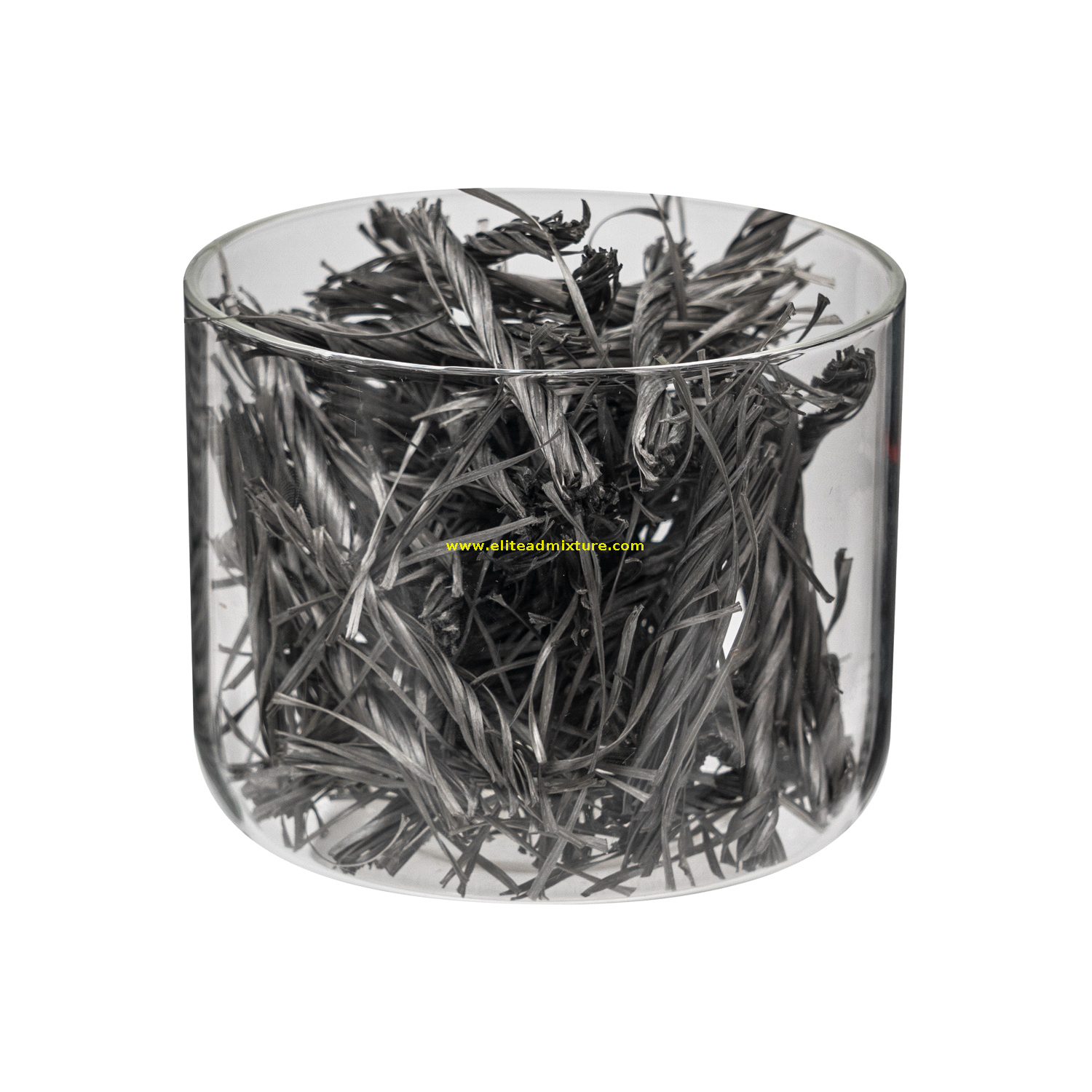

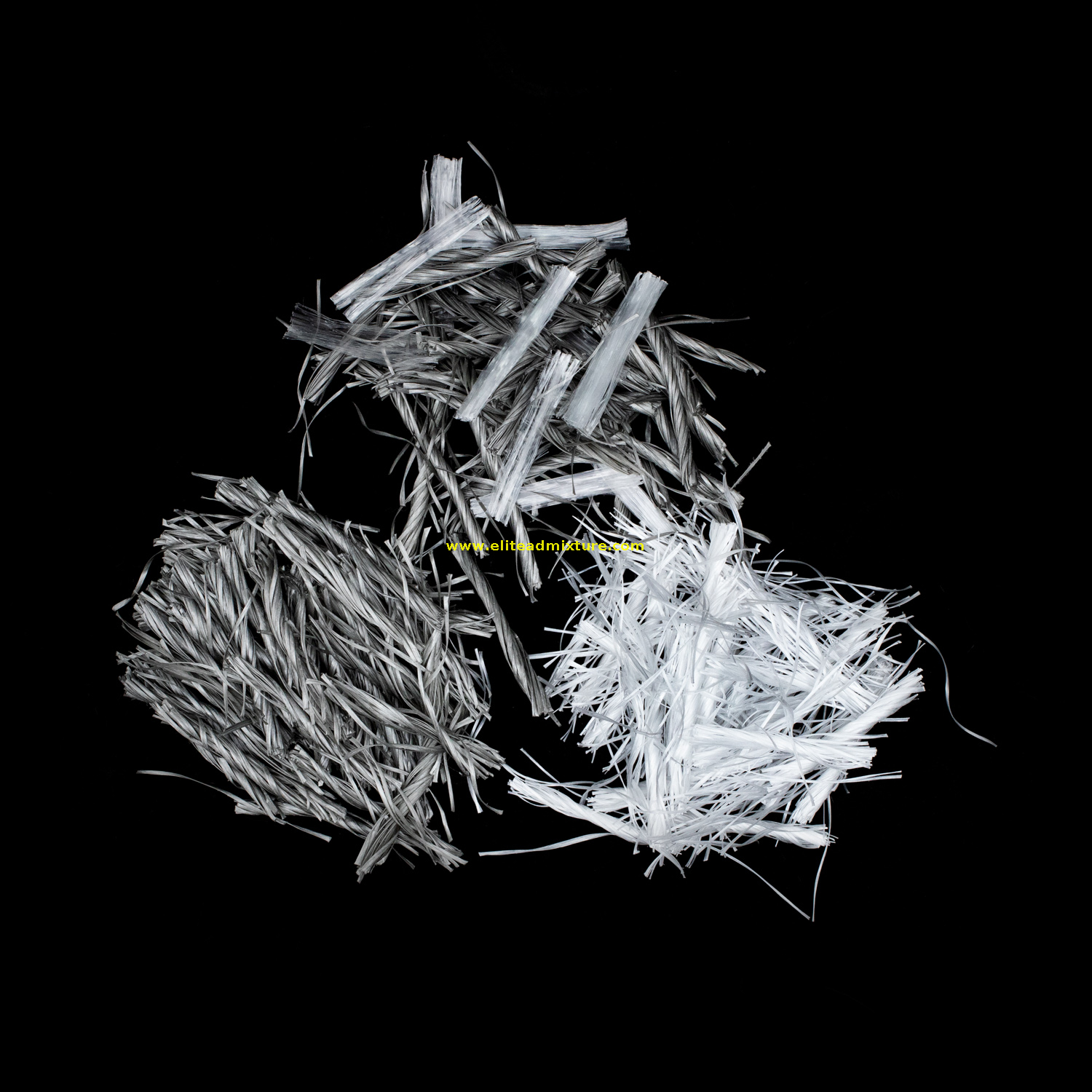

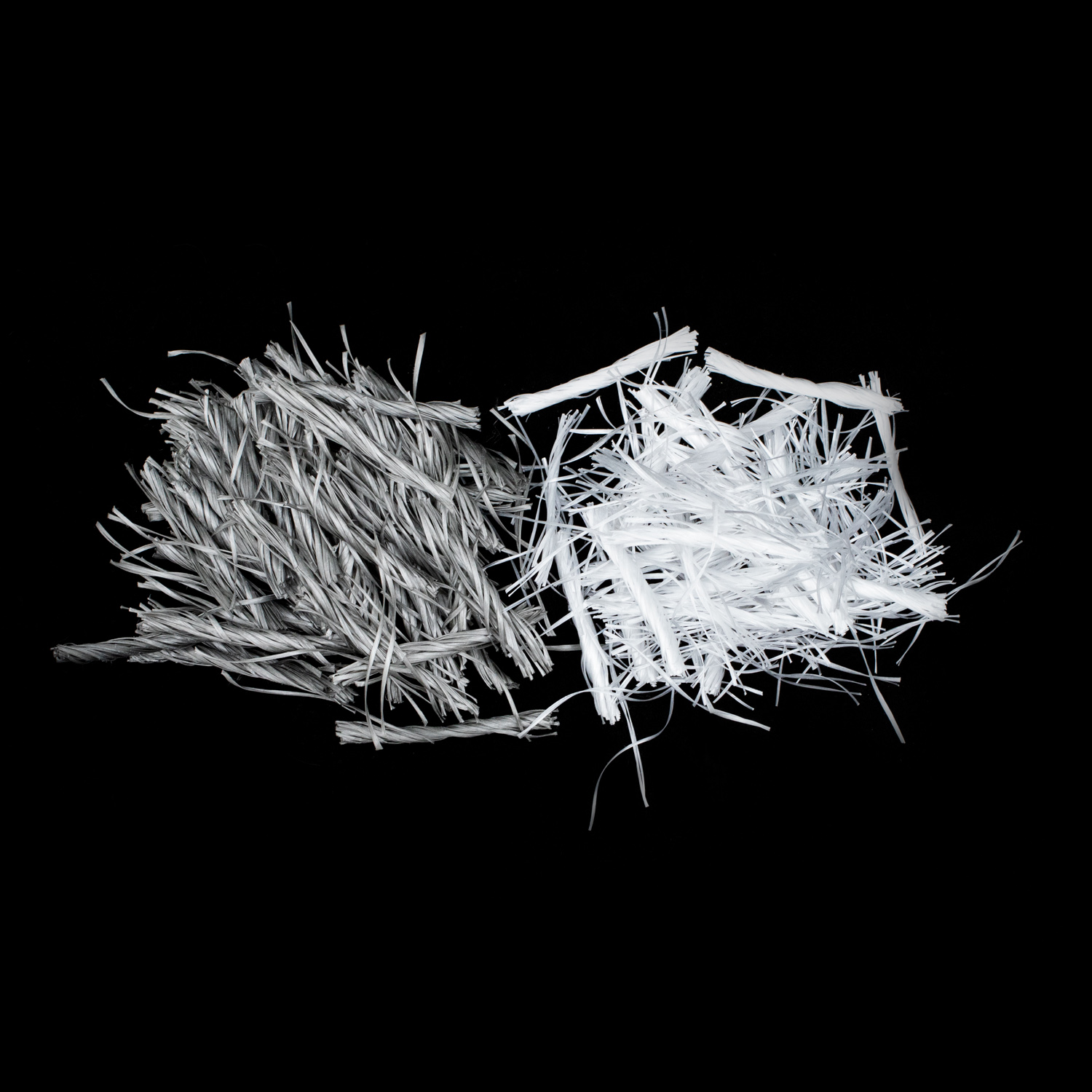

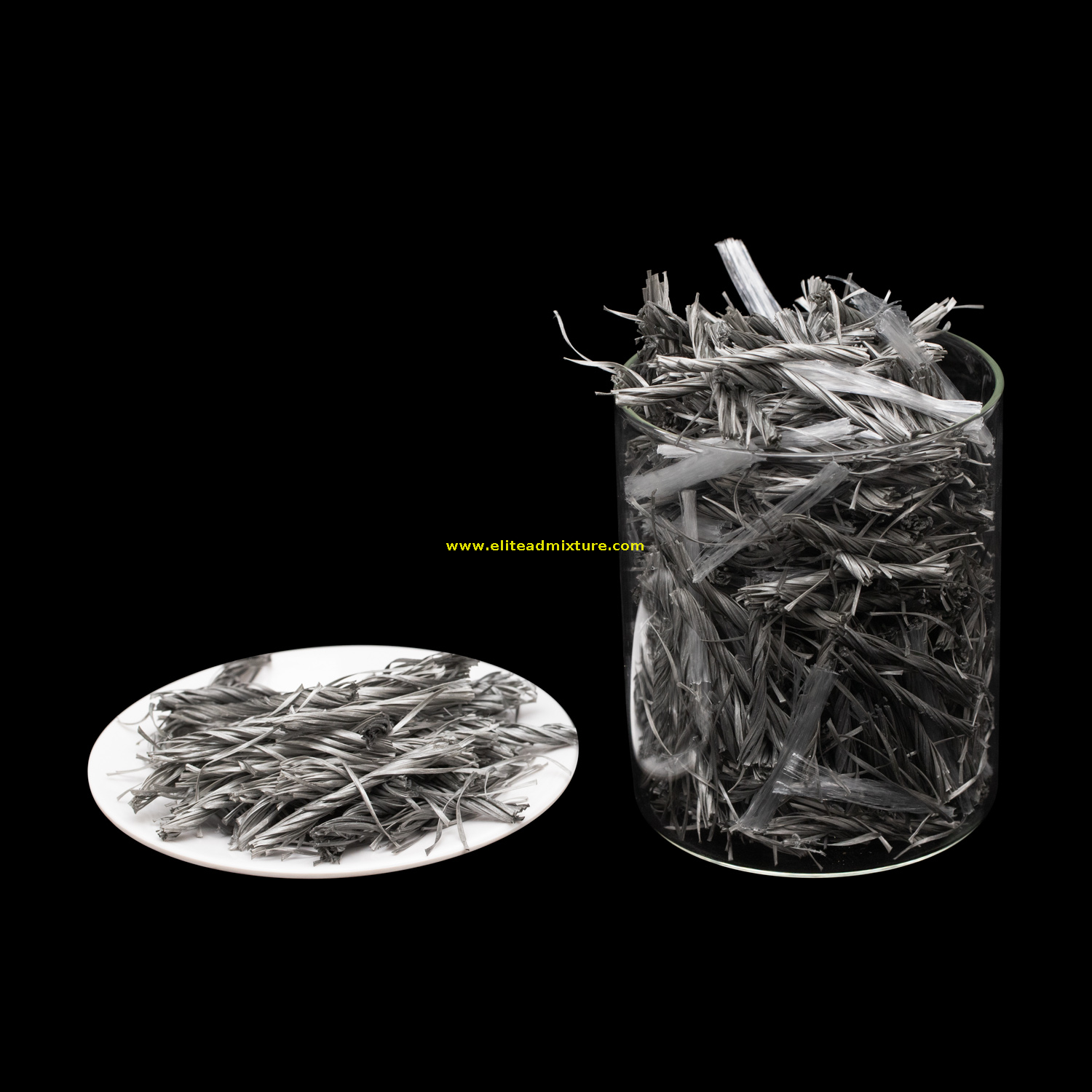

Macro Synthetic Fiber ELT-twisted is polymer synthetic Structural macrofiber of twisted type used as substitute of steel fibers, welded wire mesh WWR and conventional reinforcing bars in a wide variety of secondary reinforcement applications. twisted fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.
Macro Synthetic Fiber Twisted comply with ASTM C1116 and EN14889-2 Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used for the reduction of plastic shrinkage cracks, to improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability of concrete, structural enhancements and cement based building products.
Typical Functions
· Increases impact, shatter and abrasion resistance of concrete
· Reduces segregation, plastic settlement, and shrinkage cracking of concrete
· Provides three-dimensional reinforcement against macro-cracking
· Increases overall durability, fatigue resistance and flexural toughness
· Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control
· Easily added to concrete mixture at any time prior to placement
Typical Application
· Industrial and residential floors
· Whitetoppings, bridge decks and pavements
· Thin walled pre-cast (septic tanks, vaults, walls, etc.)
· Mass concrete
Main Specifications
Density (g/cm 3 ) | 0.91 +/- 0.01 | Equivalent Dia. (mm) | 0.3±0.05 |
Shape | Twisted or Hybrid | break tensile Ratio (%) | 8-15 |
Crack Ratio (%) | 20+/-5 | Melting point ( C. Deg) | 160-170 |
Tensile Strength (Mpa) | 400 to 600 | Water Absorption | Negligible |
Elastic Modulus (Mpa) | >3500 | Resistance to acid & alkali | Excellent |
Material | Virgin Copolymer/Polypropylene/Polyethylene | ||
Length (mm) | 38/48 /54 or as per your request | ||
Dosage rates will vary depending upon the reinforcing requirements and can range from 1kg/m³ to 6 kg/m³ |
Directions for Use
Macro Synthetic Fiber Twisted can be added to the concrete mixture at any time prior to placement of the concrete.
Macro Synthetic Fiber Twisted is generally recommended to add any fiber material at the ready-mix concrete plant during batching.
Fibers must be mixed with concrete for 3-5 minutes at maximum mixing speed, depending on the mixer type, to ensure complete dispersion and uniformity.

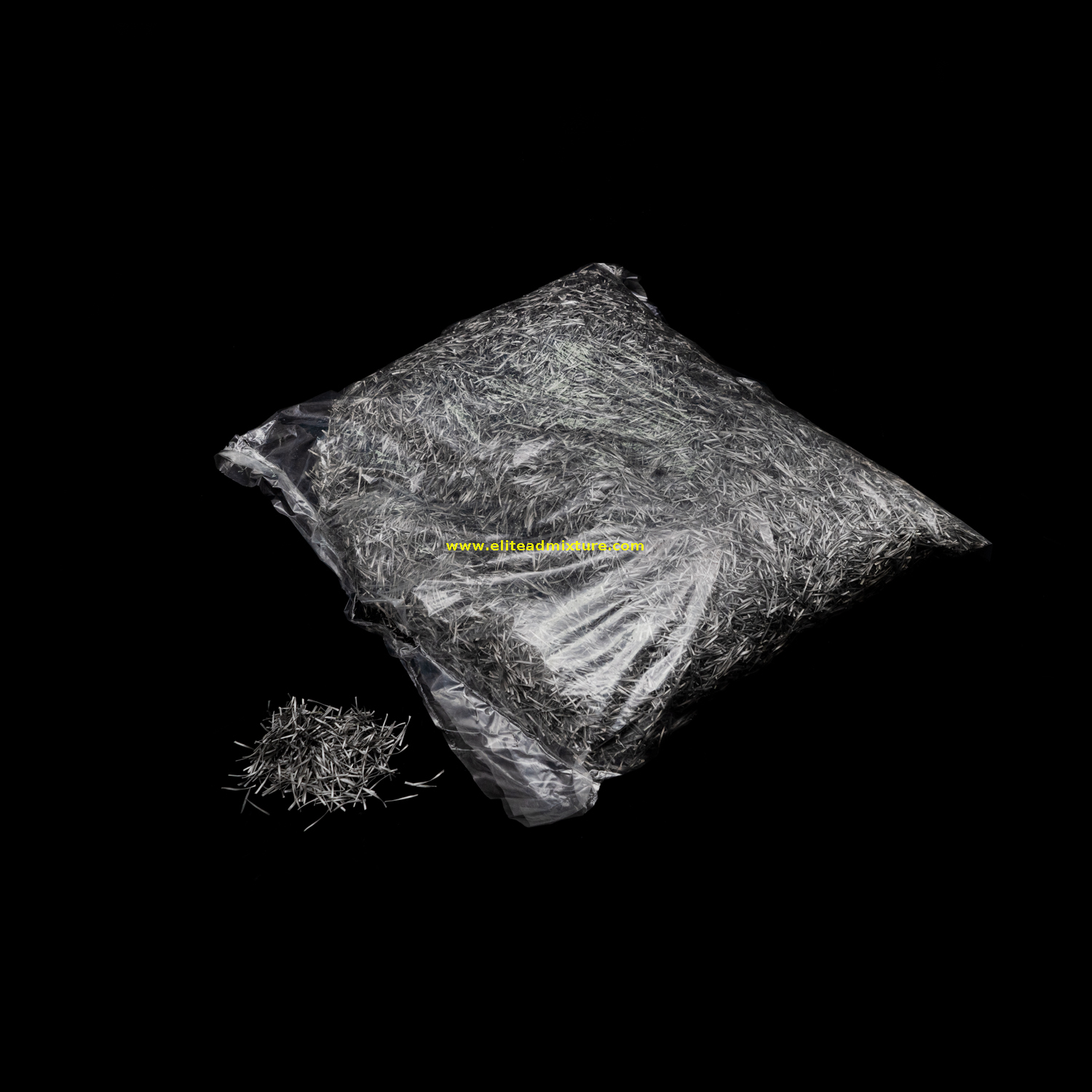

Packing
Shape | Inner Packing (PE Film Bag) | Outer Packing (Plastic Woven Bag) | 20’gp | 40’HQ |
Twist | 1.0kg | 10kg | 5500kg | 13000kg |
Inner Packing(Water Soluble Paper Bag) | Outer Packing (Carton) |
| ||
01.0kg | 10kg | 4000kg | 9600kg | |
Other Packing Can As Per Your Request |
