ELT-PNS
ELITE-INDUS
Poly Naphthalene Sulfonate Formaldehyde PNS
Product Description:
Poly Naphthalene Sulfonate Formaldehyde PNS is high range water reducer, high concentrate naphthalene-based superplasticizer, also named Naphthalene Sulfonate Formaldehyde Condensate (NSF), FDN, SNF, PNS, etc...
Poly Naphthalene Sulfonate Formaldehyde PNS was made of naphthalene, sulforic acid, formalin and alkali, through sulphuration, hydrolyzation, condensation and neutralization reaction.
Poly Naphthalene Sulfonate Formaldehyde PNS contains chloride free and will not promote corrosion in steel,
It complies with the requirements of concrete admixture specifications :
ASTM C 494, Type F; ASTM C 1017, GB8076-2008 and GB50119-2003.
Specification:
INDEXITEM | Elt-PNSA | Elt-PNSB | Elt-PNSC |

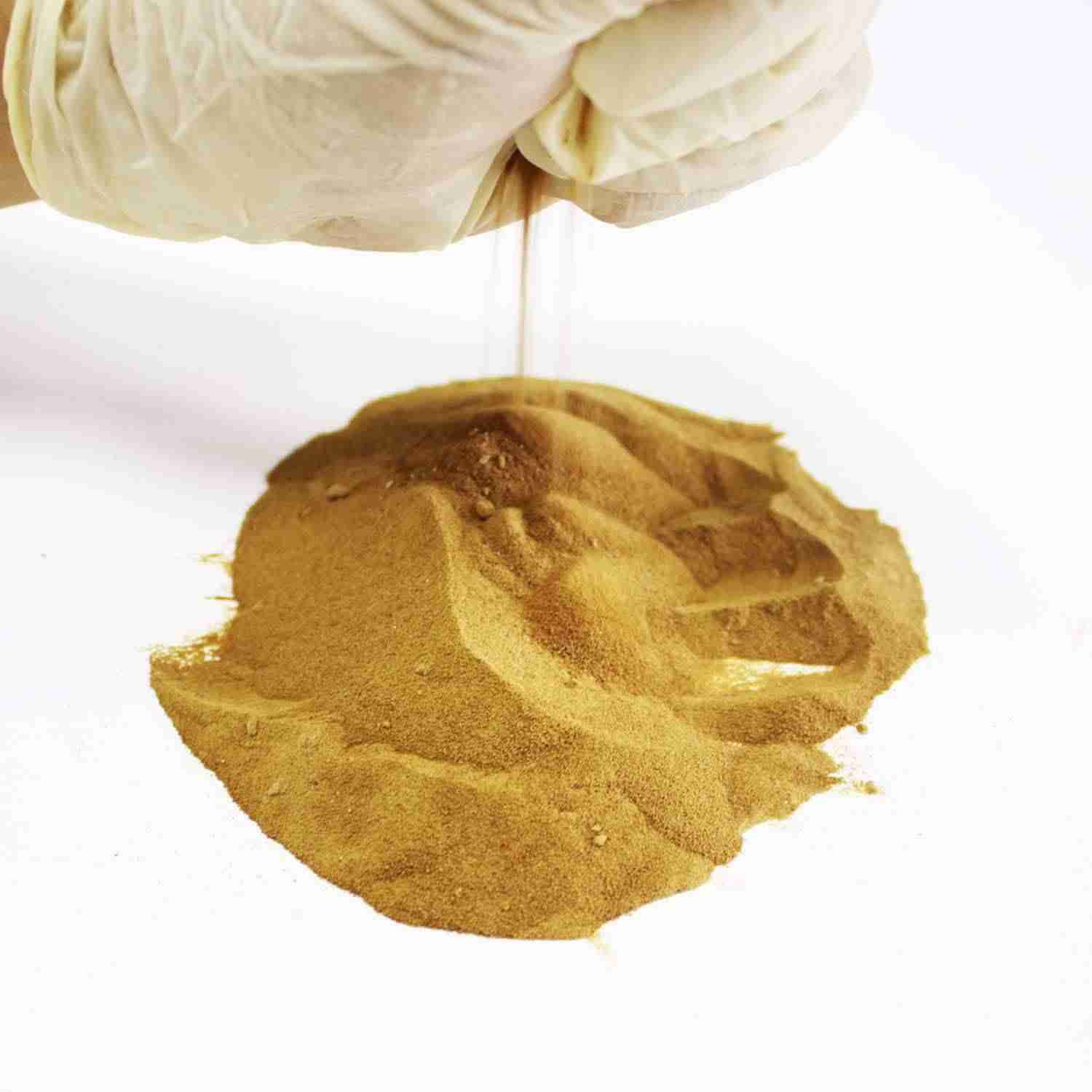

Appearance | Light brown powder | Light brown powder | Light brown powder |
Solid Content | ≥92 | ≥92 | ≥92 |
NaSo4 Content | ≤5% | ≤10% | ≤18% |
Chloride Content | 0.3% | 0.4% | 0.5% |
PH Value | 7-9 | 7-9 | 7-9 |
Net Starch Fluidity | ≥250 mm | ≥240 mm | ≥230 mm |
Surface Tension | 70±1×10-3N/M | 70±1×10-3N/M | 70±1×10-3N/M |
Note: NaSO4 Content ≤ 3% 7% 9% 15% etc... also availabe
USAGE:
◆ Blending dosage at 0.5%-1.0%, 0.6%,0.75% mixing dosage advised.
◆ Prepare solutions as required.
◆ Direct use of powder agent is allowed.
Alternatively the addition of the agent is followed by water Moisturization (water-cement ratio:60%).
Applications:
◆ Used for and widely for self-cured, vapor-cured concrete and its formulations. At the early stage of application, extremely prominent effects are shown. As the result, the modulus and site utilization can be drastically, the procedure of vapor cure is omitted in peak-heat summer days. Statistically 40-60 metric tons of coal will be preserved when a metric ton of the material is consumed.
◆ Suitable for preparation of early-strength, high-strength,high-anti-filtration and self-sealing & pumpable concrete.
◆ Widely used in pre-cast & ready-mixed concrete, armored concrete and pre-stressed reinforced concrete in key construction projects such as dam and port construction, road building & town planning projects and dwelling erections etc.
◆ Compatible with Portland cement, normal Portland cement, Portland slag cement, fly-ash cement and Portland pozzolanic cement etc.
Safety And Handling Precautions:
Poly Naphthalene Sulfonate Formaldehyde PNS, if direct and prolonged contact with eyes and skin may cause irritation. Wash the affected area of body with plenty of tap water immediately. If irritations persist for long time, please contact with doctor.
Packing And Storage:

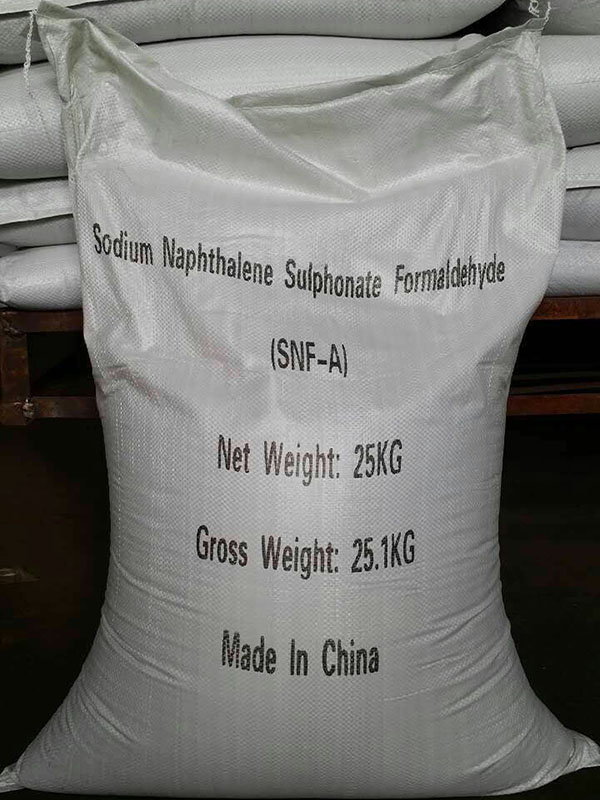

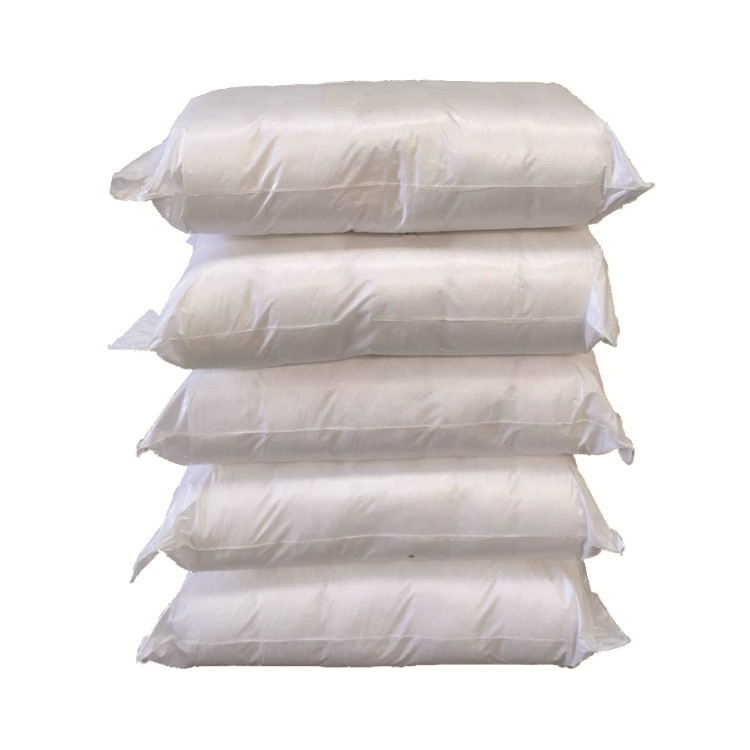

25kg Woven fabric bag with plastic liner, 16tons/1X20`gp, 28tons/1X40`gp.
recommended to store at ambient temperature in closed condition and to be protected from direct sunlight and rain.
