Micro Synthetic Fiber Fibrillated 9mm to 54mm ELT-FIBRIL

Micro Synthetic Fiber Fibrillated ELT-FIBRIL

Length: 9mm to 54mm

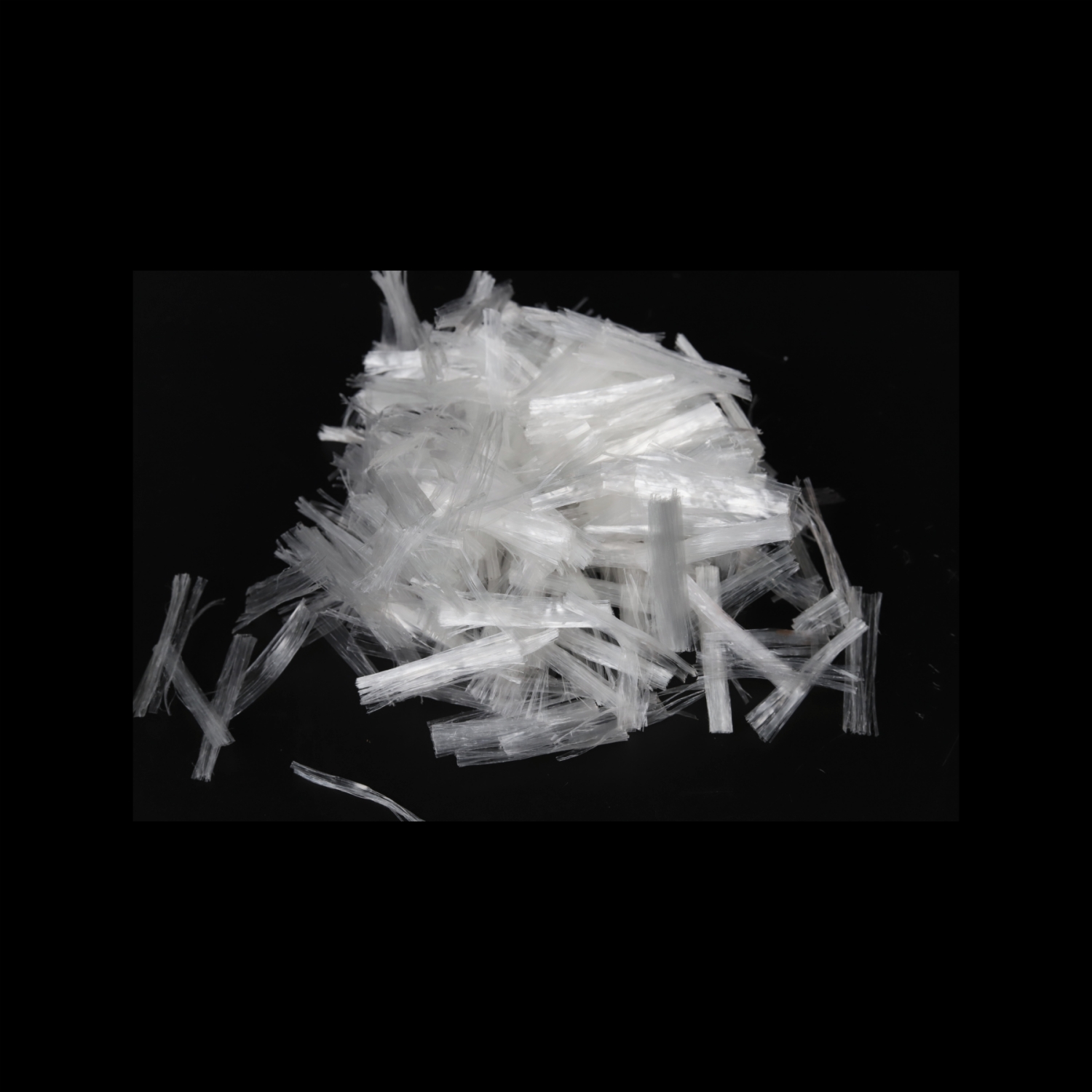

Micro Synthetic Fiber Fibrillated ELT-FIBRIL is a Fibrillated (MESH) polypropylene microfiber for concrete reinforcement that complies with ASTM C 1116, EN14889-2 Standard Specification for Fiber Reinforced Concrete, and is specifically designed to help mitigate the formation of plastic shrinkage cracking in concrete.

Typically used at a dosage rate of 0.6kg/m3 to 3kg/m3.

Functions of Micro Synthetic Fiber Fibrillated

Advantages of Micro Synthetic Fiber Fibrillated

Applications of Micro Synthetic Fiber Fibrillated

◆ Suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.

◆ Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.

◆ Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.

◆ Suit for any mortar projects and common concrete projects.

◆ Highway, bridge and other roads.

Applying Instructions

◆ Concrete Projects like concrete road, bridge, airport road and factory floor which strictly require cracking resistance.

   The life span of these projects will be lengthened for 5-10 years.

◆ The walls of tunnels, mines, roofs and reservoir projects with special construction. When using spray technology in concrete construction, the polypropylene fiber added into the concrete can effectively decrease the spray concrete's deformation rate of the walls less than 8% and that of the roof less than 12%, and also can reduce the friction.

It can improve the constructing efficiency and working environment and popularize the spray technology.

◆ River courses and dams, etc...

The polypropylene fiber can improve concrete's resistance to crack and squirt and wear to lengthen projects' life span.

◆ Military defense works, dock banks and piers, etc...

This fiber can greatly strengthen the concrete's spurt resistance and heighten these projects' safety and lengthen their life span.

Applying Instruction

◆ Dosage :

for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement concrete or mortar,

for increasing reinforce and seepage resist application 1.8-3.0kg/m3 is good.

◆ Stirring requirement :

The proportion of cement, sand and aggregate is no need to be changed.

Put cement, aggregate, additive and fiber together, then stir after adding enough water and time for stirring can be prolonged for 2~3 minutes in order to make the compound mix completely.

Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite before construction.

Specifications of Micro Synthetic Fiber Fibrillated

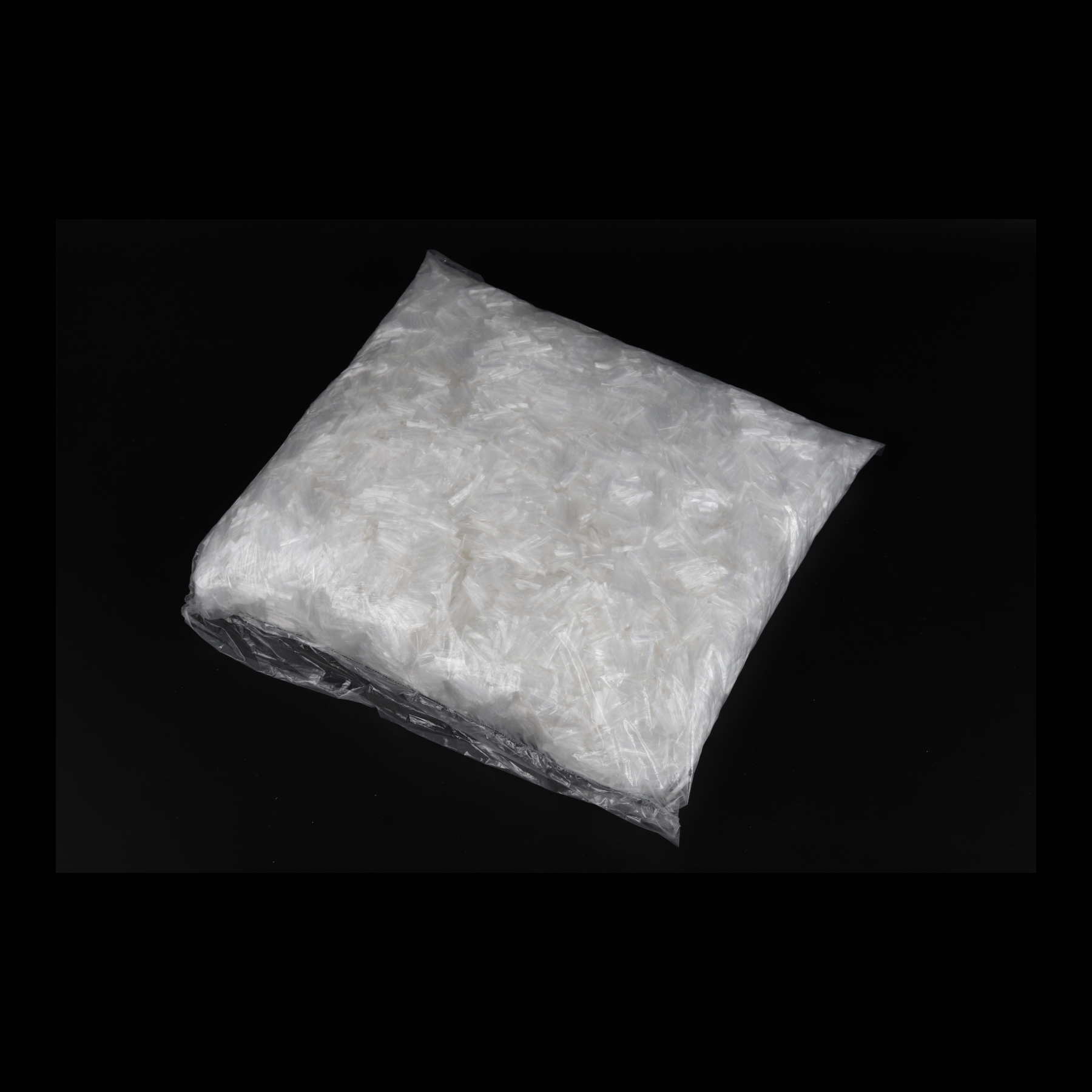

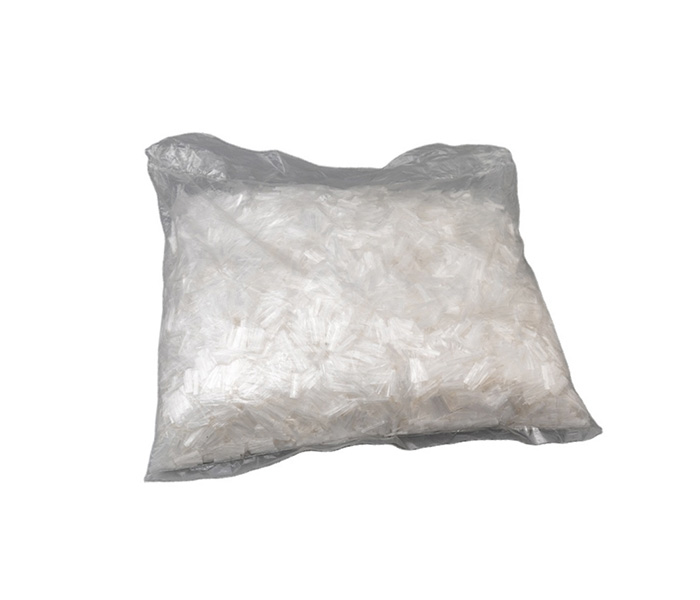

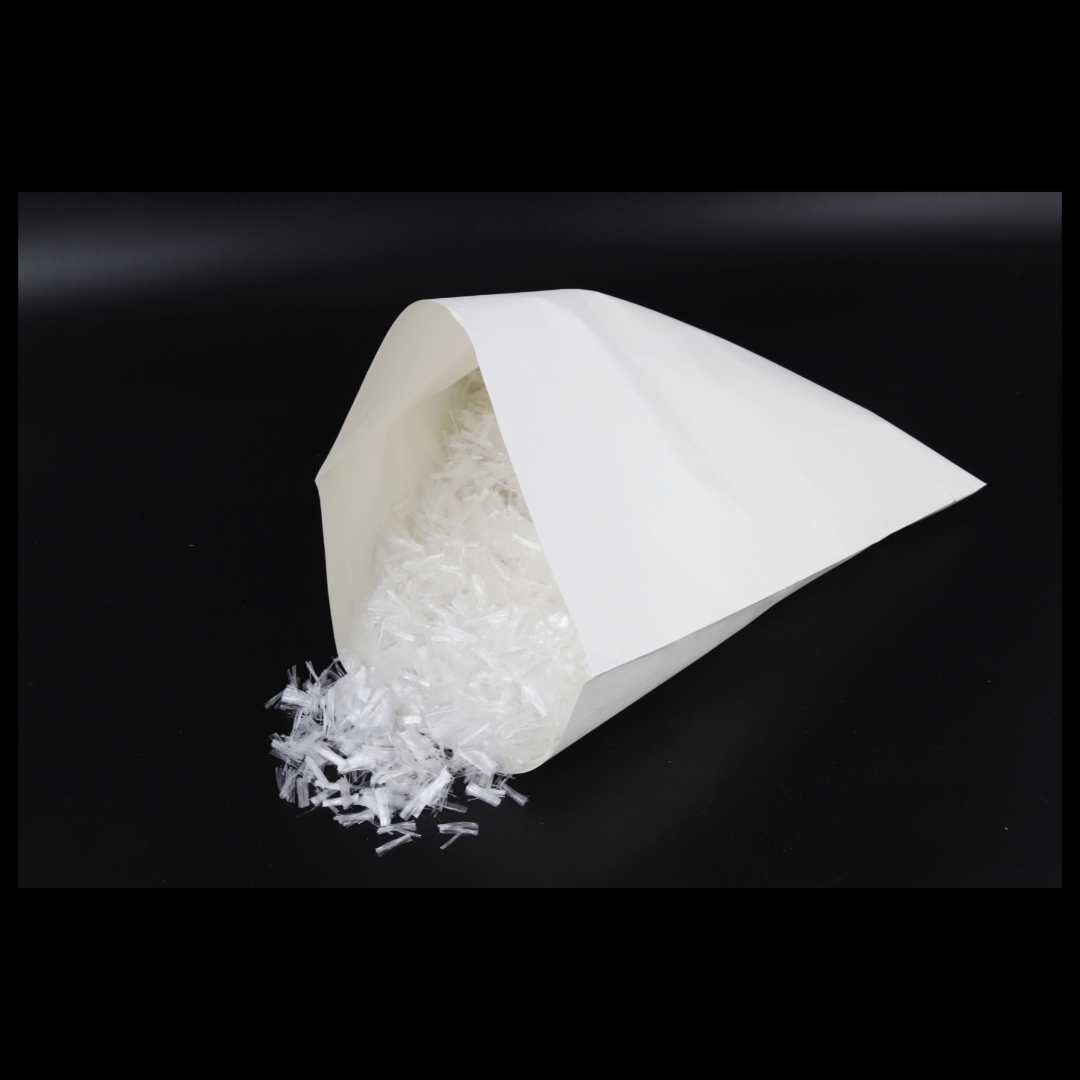

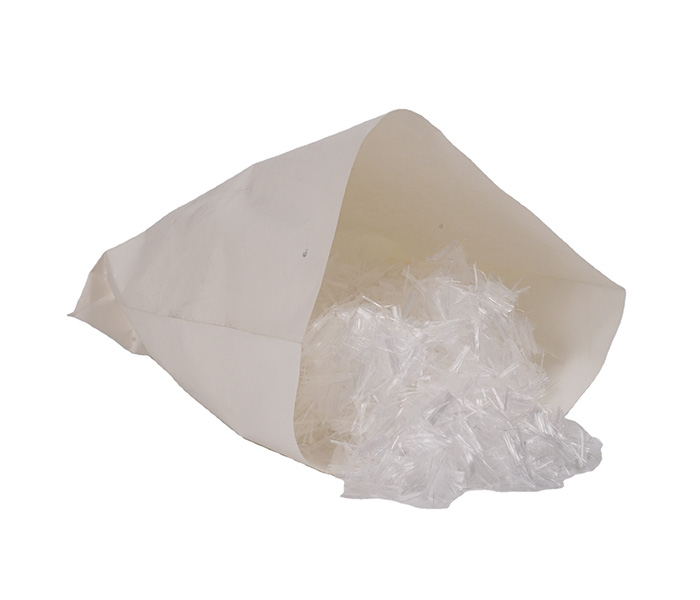

Packing

Standard Packing:

1kg/PE Film bag, 12kg/Plastic Woven bag, 6000KG/20’gp without Pallets, 13000kgs/1x40`hq without pallet.

0.6kg or 0.9kg soluble bag, 10.8kgs/carton, 360ctns/1x20`gp with pallet, 900ctns/1x40`hq with pallet.

or 400ctns/1x20`gp without pallet, 950ctns/1x40`hq without pallet.

Other packing can as per your request.
