Macro Synthetic Fiber ELT-Embossed

Macro Synthetic Fiber Embossed is a Structural macro synthetic fiber engineered for use as an alternate to steel fibers and welded wire mesh for precast concrete and shotcrete reinforcement applications, normal length 38mm, 50mm, 54mm, 65mm

Quantity:
Availability:





Inquire Add to Basket

Model:
ELT-embossed
Brand:
ELITE-INDUS

Macro Synthetic Fiber Embossed Synthetic macrofiber synthetic macro fiber Synthetic polymer macrofiber Synthetic polymer macro fiber Synthetic macrofibre Synthetic polymer macrofibre Synthetic macro fibre

Products

Product Description

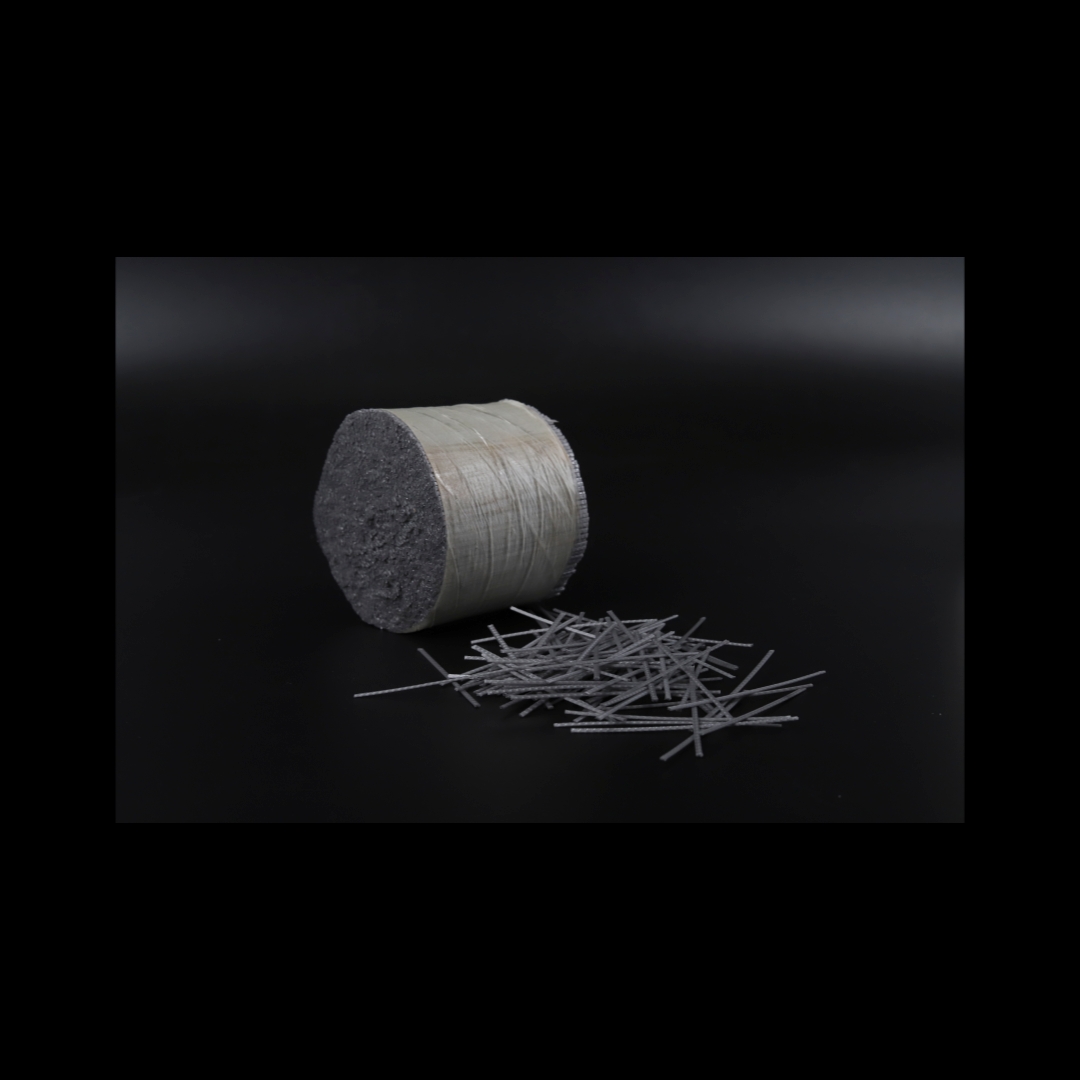

Macro Synthetic Fiber ELT-Embossed

Length: 38mm, 50mm, 54mm, 65mm

Color: Transparent, White, Grey, Black

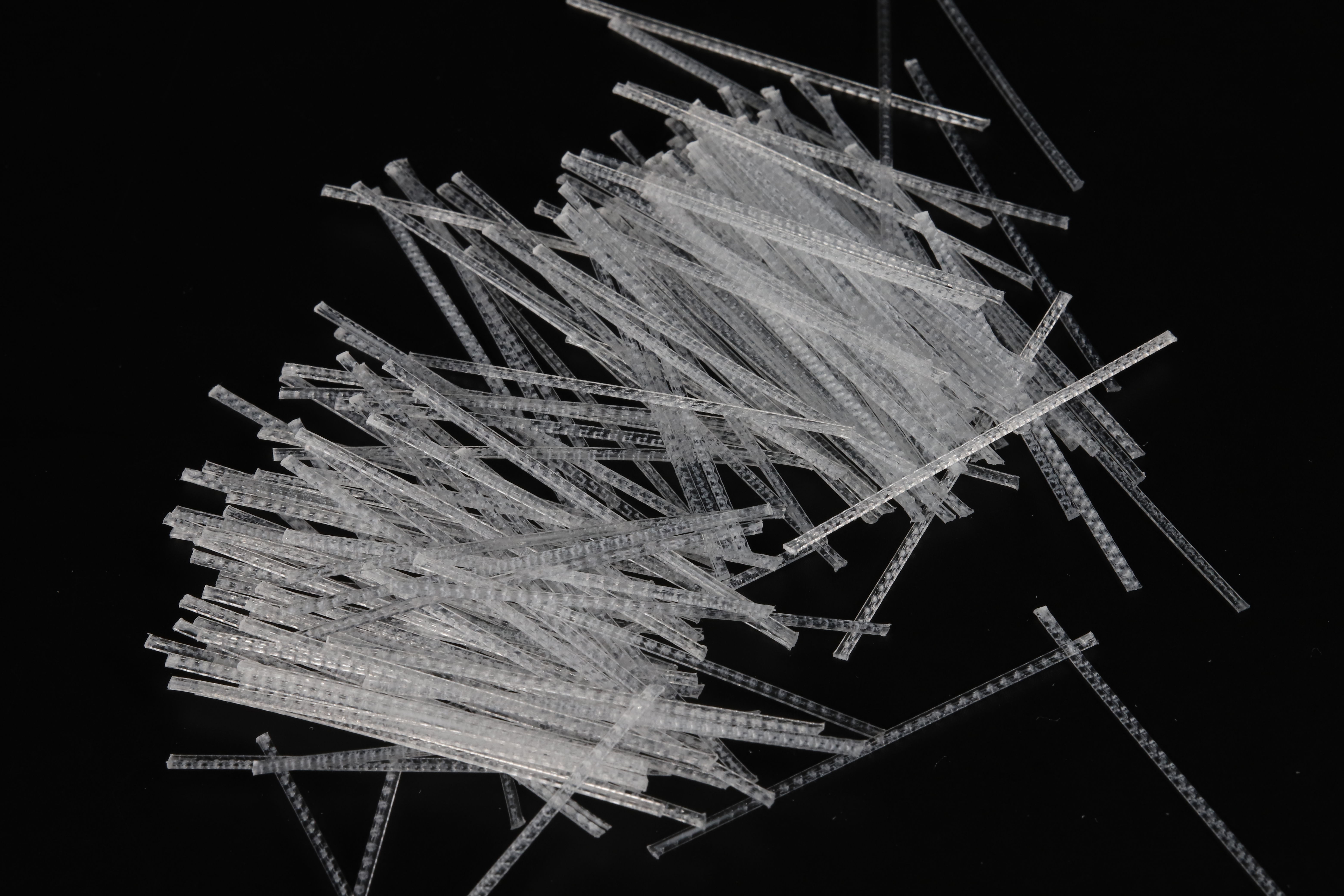

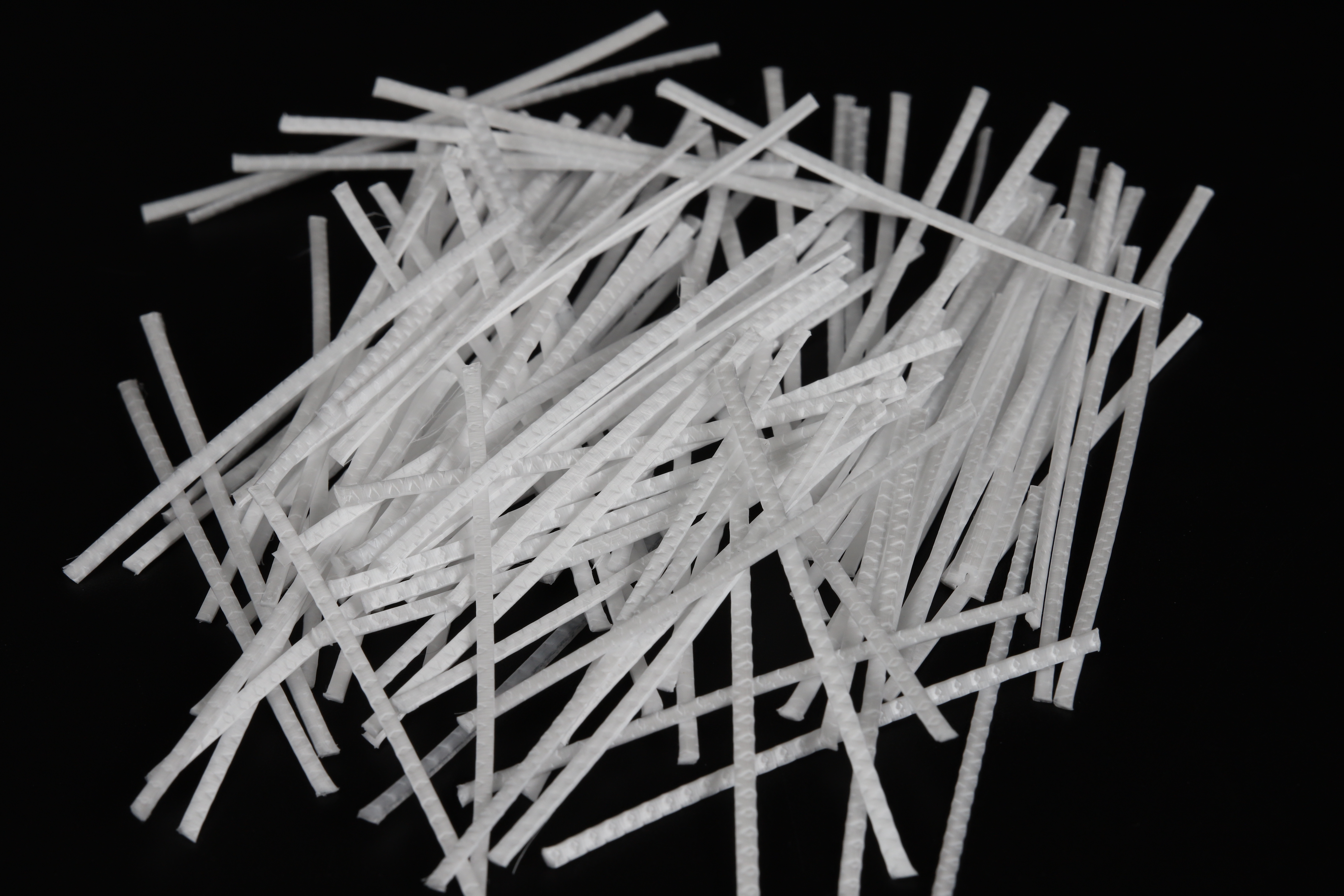

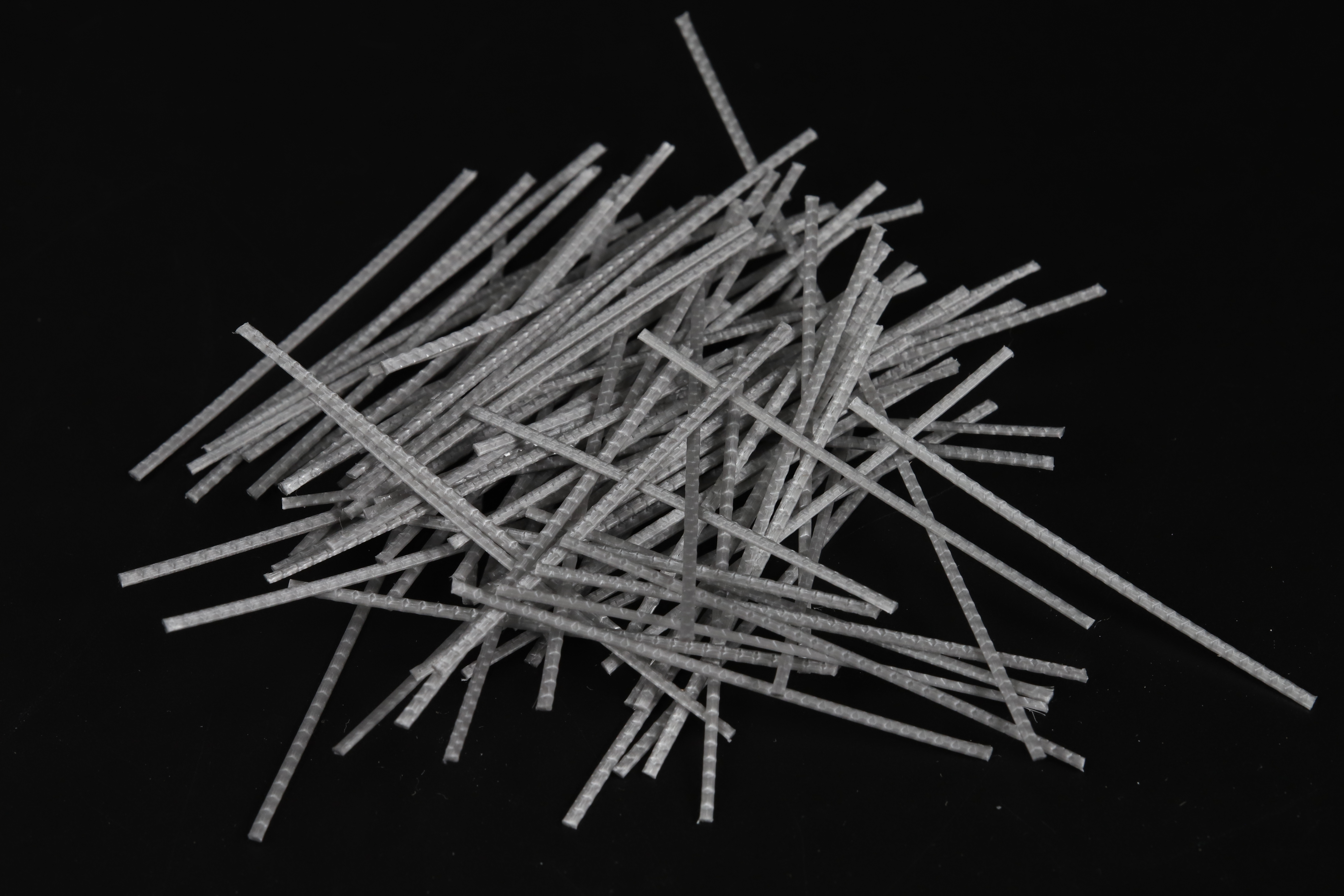

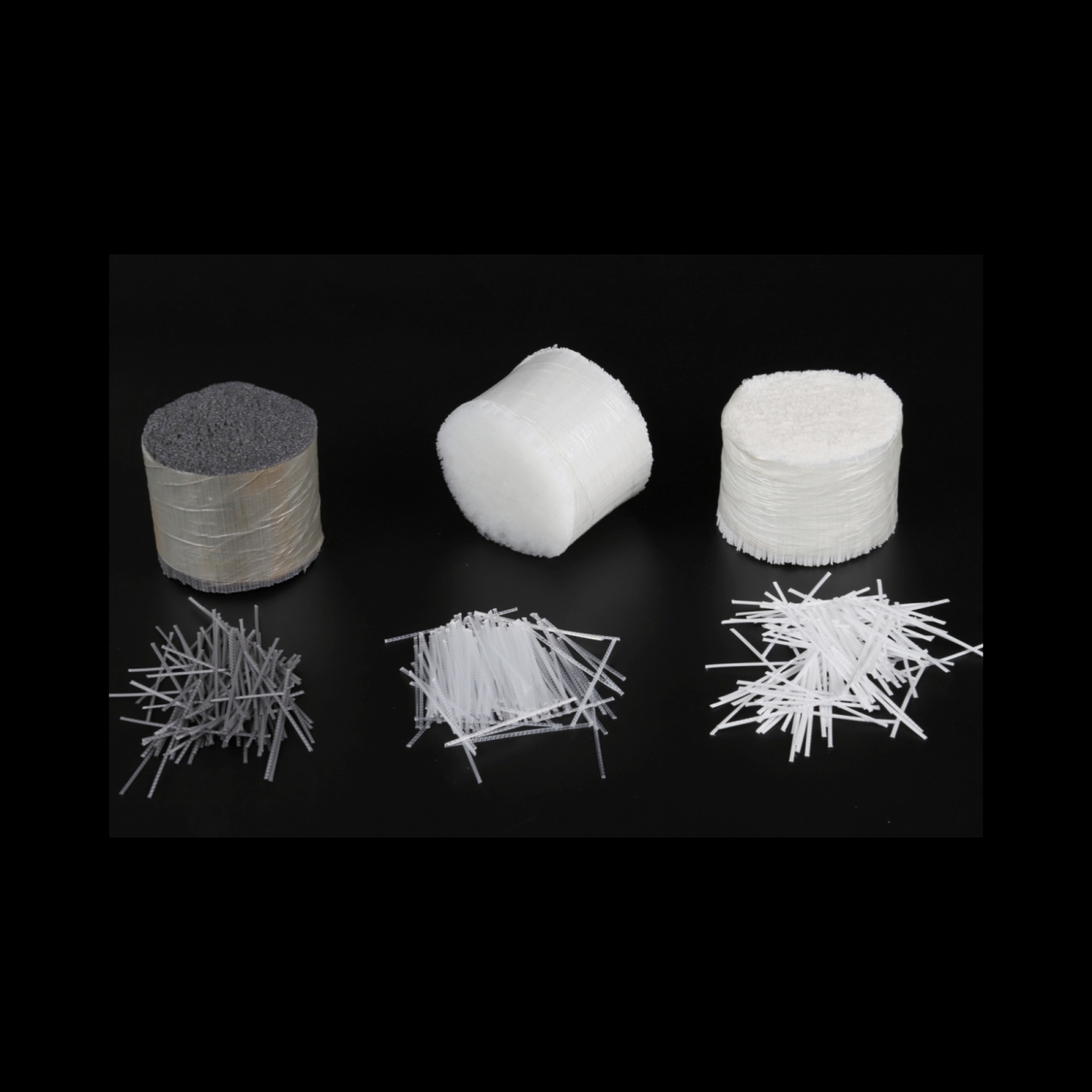

Macrofiber embossed transparent synthetic macrofiber embossed white syntheti macrofiber embossed gray

Macro Synthetic Fiber ELT-Embossed comply with ASTM C1116, EN14889-2:2006 Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used to improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability of concrete and cement based building products.

Dosage rates will vary depending upon the reinforcing requirements and can range typically from 2kg/m3 to 10kg/m³.

Macro Synthetic Fiber ELT-Embossed synthetic macrofibers comply with applicable portions of the International Code Council (ICC) Acceptance Criteria AC32 for synthetic fibers and can save time and money on construction projects by eliminating the purchase, storage, handling, cutting, placing and waste of welded wire mesh. These fibers are chemically inert and will not corrode.

Functions of Macro Synthetic Fiber ELT-Embossed

◆ Provides good impact, fatigue, shrinkage control and ductility in all grade concretes.

◆ Cost saving, Is easier to use, to disperse and safe to handle.

◆ Can be used in highly corrosive circumstance.

◆ The surface has been embossed,which greatly improves the cohesive force between fibres and concrete, and also boosts shrinkage resistance and crack resistance.

◆ The toughness of macro synthetic fibre is less stronger than steel fibre. But test has shown slabs on grade and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibers per cubic meter, in comparison, using between 2kg-10kg of macro synthetic fibre per cubic meter of concrete. Synthetic fibers achieve greater strength and ductility in the matrix

Application of Macro Synthetic Fiber ELT-Embossed

Shotcrete, and engineering industries, concrete project,like:

◆ Slab on Grade and elevated construction (distribution centers, warehouses, etc.)

◆ Thin walled precast (septic tanks, vaults, walls, etc.)

◆ Shotcrete for tunnel linings, pool construction and slope stabilization

◆ Pavements and white-toppings

Specifications of Macro Synthetic Fiber ELT-Embossed

Raw Material	Virgin grade polymer polypropylene	Tensile Strength (MPa)	550Min.
Water Absorbency	No	Density (g/cm3)	0.91+/-0.01
Melting Point (C Deg.)	160 - 170	Elastic Modulas (Mpa)	9000
Acid & Alkali Resistance	Excellent	Equivalent Diameter	0.8mm+/-0.2mm
Thickness	0.55mm-0.65mm	Width	1.0mm-1.4mm
Moisture Content	0.0%	Fiber Type	Embossed
Color	White, Black, Grey, Transparent
Length	30mm , 48mm, 50mm, 54mm, 55mm, 60mm, 65mm or as per request
Tandard Dosage	2kg/m3 to 10kg/m3

Packing

product-bd03

product-bd04

product-bd05

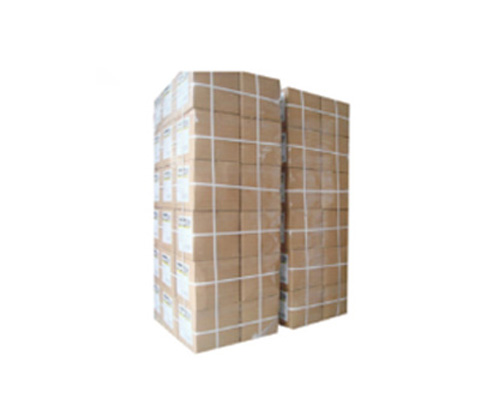

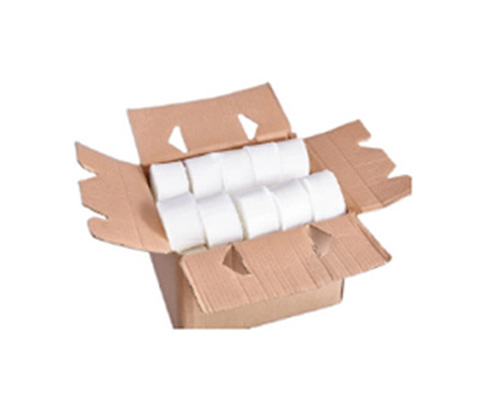

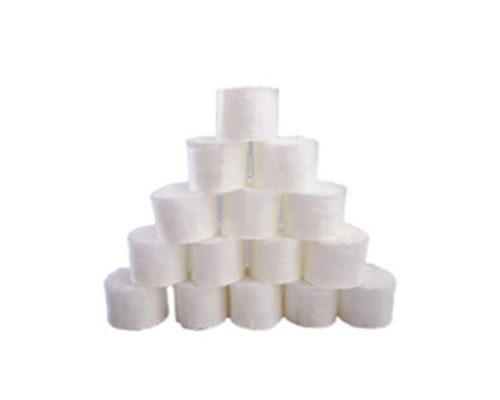

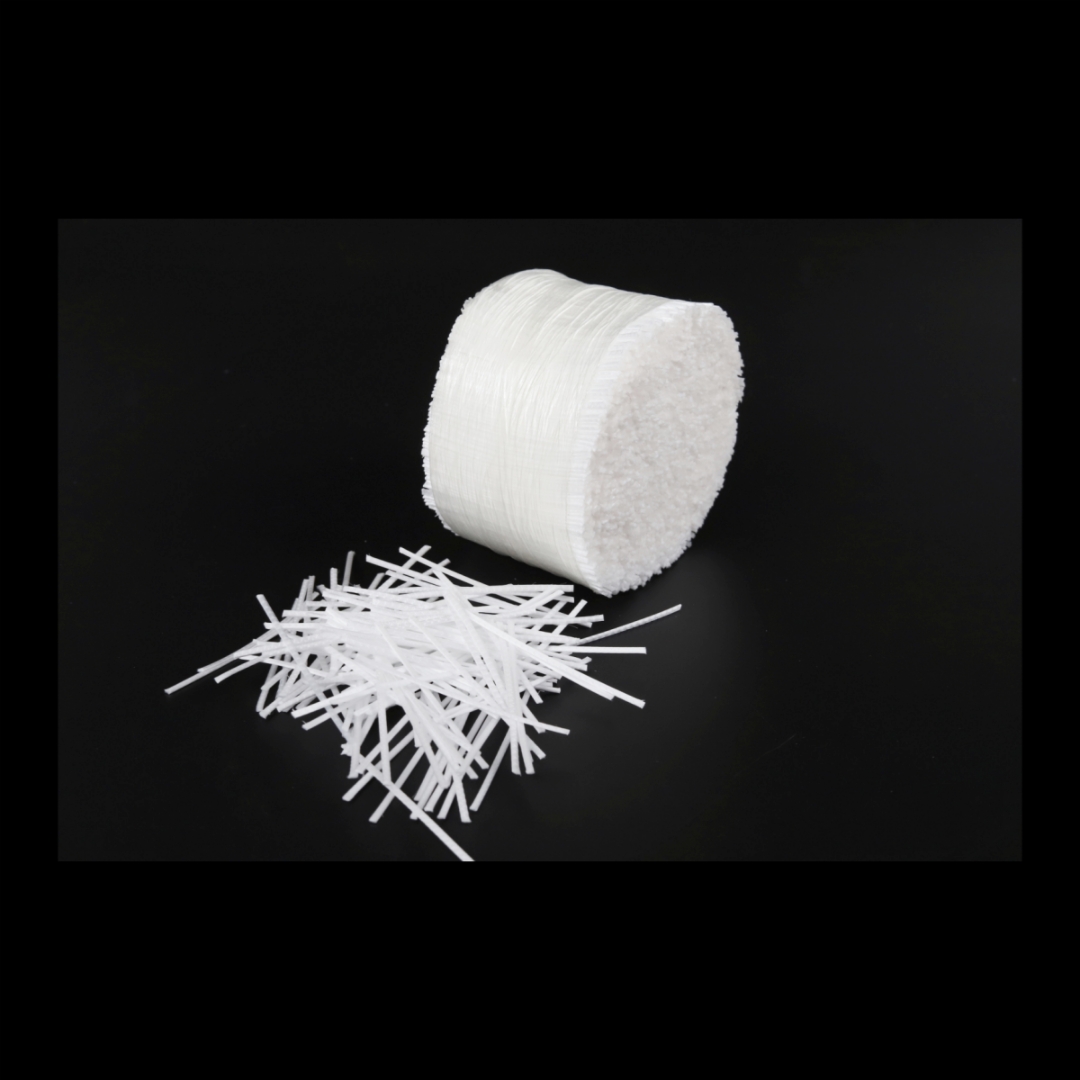

The fibers are wrapped with water-soluble film and uniquely packaged in water soluble paper boxes.Just throw the whole boxes of fibers into the concrete mixture, the boxes and film will dissolve within seconds, leaving the fibers to disperse evenly throughout the mixture.
