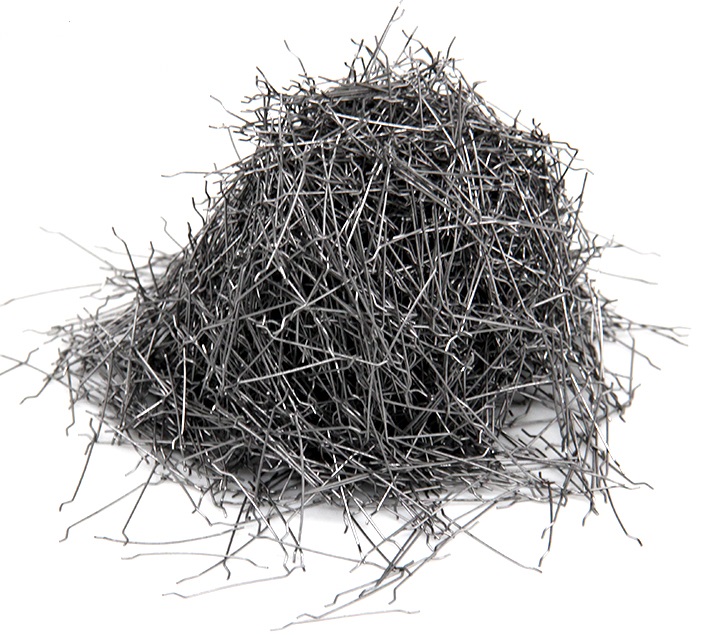

Cold-drawn Loose Hooked End Steel Fiber

Hooked End Glued Steel Fiber is a low carbon, cold-drawn and hooked-end steel wire fiber designed to provide concrete with temperature and shrinkage crack control, enhanced flexural reinforcement, improved shear strength and increase the crack resistance of concrete.
The fiber can be loosed or glued, 2types.
Hooked End Glued Steel Fiber complies with ASTM C1116, and EN14889-1

Quantity:
Availability:





Inquire Add to Basket

Model:
ELT-ST
Brand:
ELITE-INDUS

Cold-drawn hooked end steel fiber 3D Hooked End Steel Fiber hooked end steel fiber loose hooked end steel fiber hooked end steel fibre hooked-end steel fibre hooked-end steel fiber 3D steel fiber concrete steel fiber concrete steel fibre

Products

Product Description

3D Hooked End Glued Steel Fiber

Description

Hooked End Glued Steel Fiber is a low carbon, cold-drawn and hooked-end steel wire fiber designed to provide concrete with temperature and shrinkage crack control, enhanced flexural reinforcement, improved shear strength and increase the crack resistance of concrete.

The fiber can be loosed or glued, 2types.

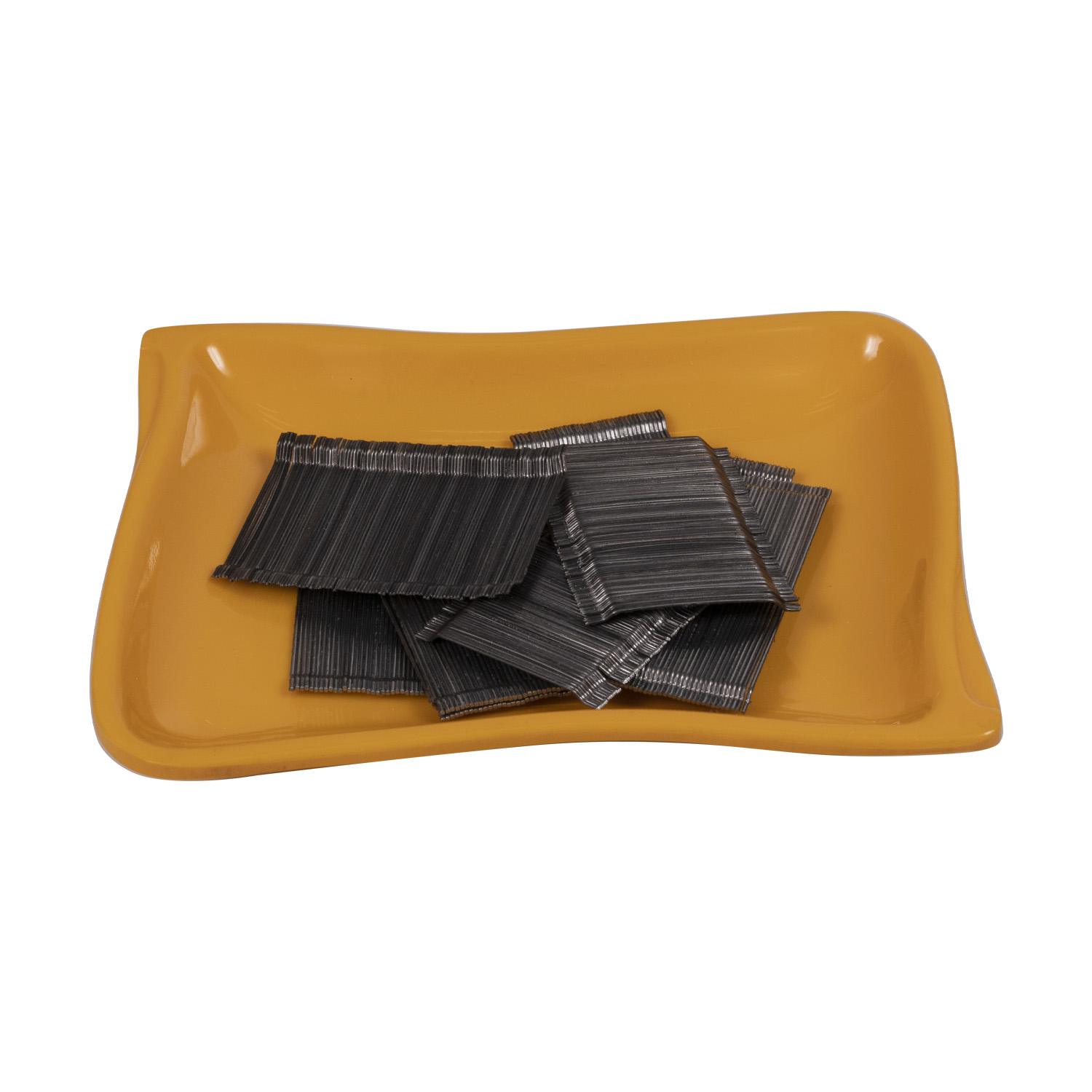

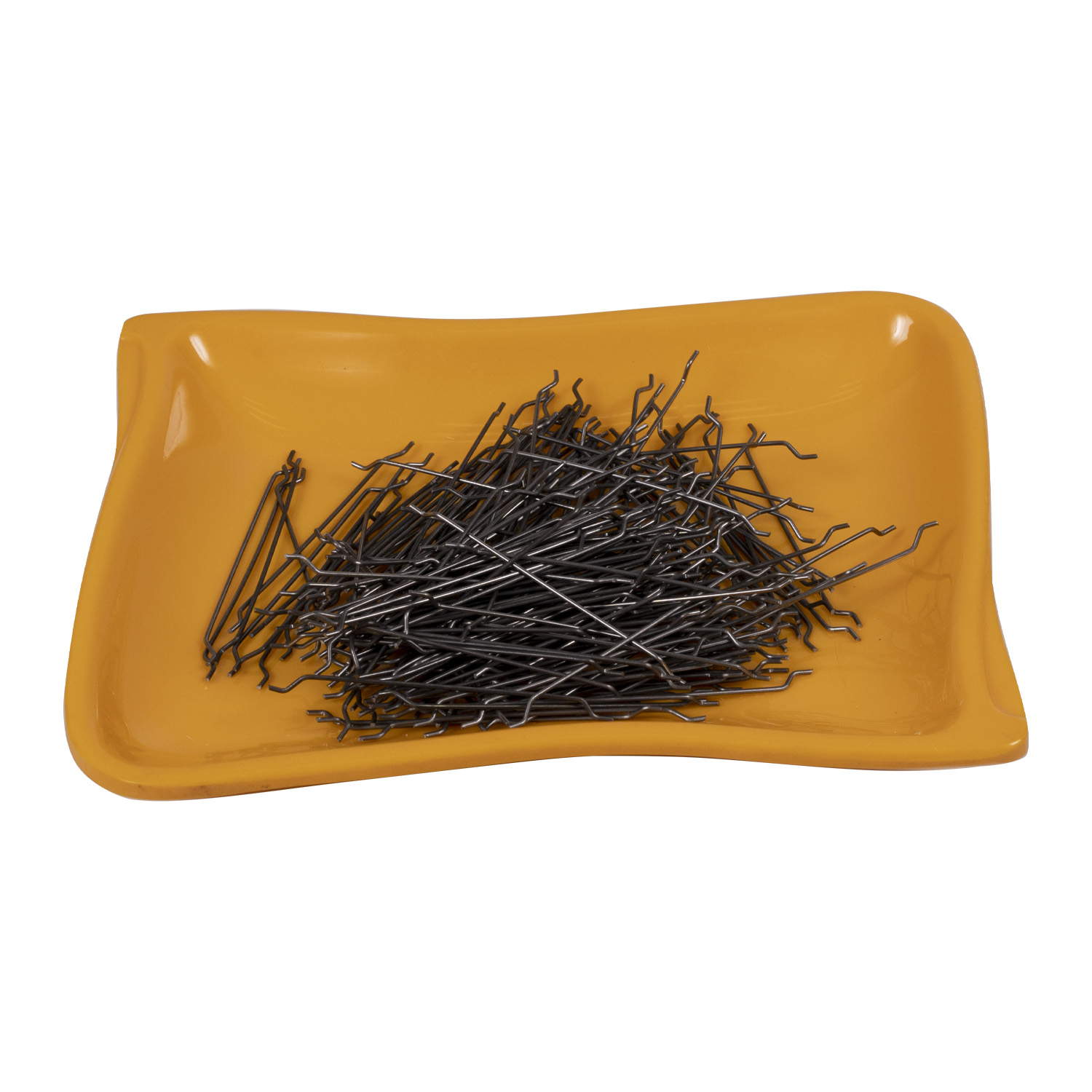

DSC04433拷贝 DSC04431拷贝

Hooked End Glued Steel Fiber complies with ASTM C1116, and EN14889-1 Standard Specification for Fiber Reinforced Concrete and Shotcrete and ASTM A820, Type I fiber, Standard Specification for Steel Fibers for Fiber Reinforced Concrete.

Hooked End Glued Steel Fiber improve impact, shatter, fatigue and abrasion resistance while increasing toughness of concrete.

Dosage rates will vary depending upon the reinforcing requirements and can range from 15 to 60 kg/m³.

Functions

· Increases impact, shatter and abrasion resistance of concrete

· Reduces segregation, plastic settlement, and shrinkage cracking of concrete

· Provides three-dimensional reinforcement against macro-cracking

· Increases overall durability, fatigue resistance and flexural toughness

· Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control

· Easily added to concrete mixture at any time prior to placement

Applications

· Commercial and industrial slabs on ground

· Bridge decks, overlays and pavements

· Precast concrete applications and slabs on pile

· Shotcrete, tunnel linings and slope stabilization

· Mass concrete and composite deck construction

Specification

*Model*	*Length MM*	*Diameter MM*	*Aspect* *Ratio (L/D)*	*Tensile Strength MPA*
*ELT 70/55*	55	0.8	70	1100/1200/1300
*ELT 80/60*	60	0.75	80
*ELT 50/38*	38	0.75	50
*ELT 45/35*	35	0.75	45
*ELT 45/30*	30	0.65	45
*ELT 100/60*	60	0.62	100
*ELT 80/50*	50	0.62	80
*ELT 55/35*	35	0.62	55
*ELT 50/30*	30	0.62	50
*ELT 65/35*	35	0.54	65
*ELT 65/60*	60	0.90	65
*Note*	Other Specification( Diameter/Length/Tensile Strength) can produce as per your request
